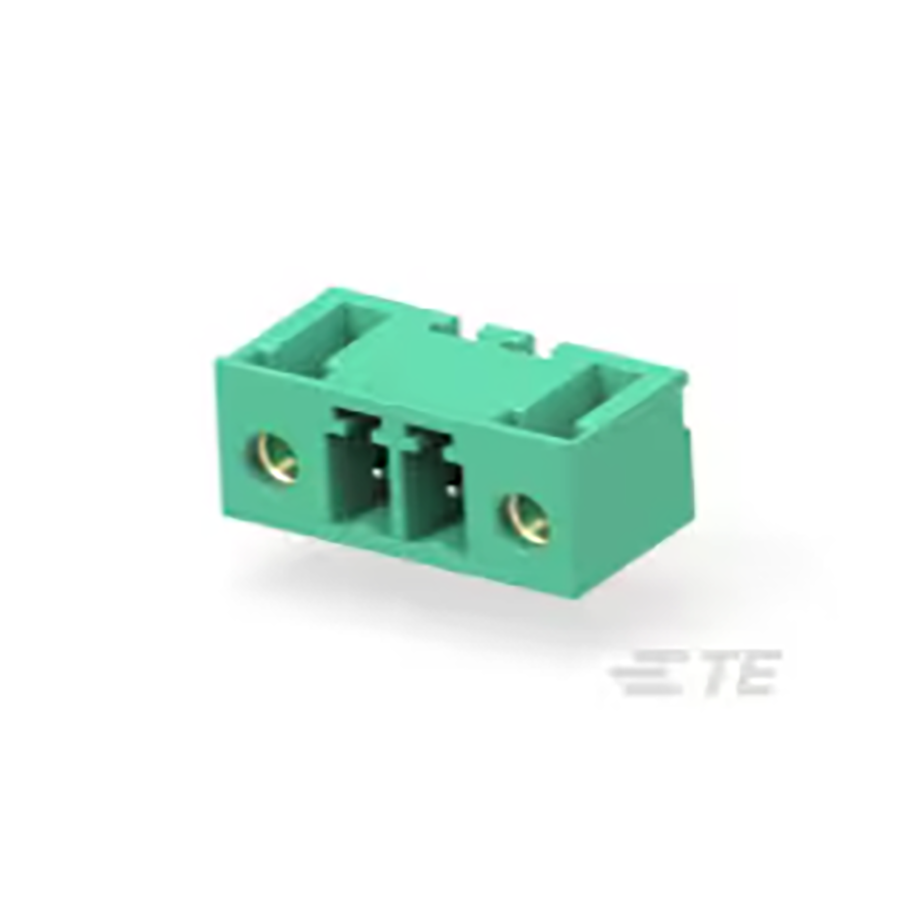

284539-2
Manufacturer:
TE Connectivity
Mfr.Part #:
284539-2
Datasheet:
Description:
Terminal Blocks Through Hole 2 3.5 mm 11 A 300 V 30 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Length | 3.5 mm |
| Width | 9.2 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 300 V |
| Material | Polyamide |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 9.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 3.5 mm |
| Current | 11 A |
| Current Rating | 11 A |
| Max Current Rating | 11 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Gender | Female |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Housing Color | Green |
| shrouded | Yes |
| Tail Length | 3.4 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Plug |
| Wire Gauge Range | 30 AWG to 14 AWG |
Stock: 497
Distributors
pcbx
pcbxUnit Price$0.90708
Ext.Price$0.90708
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.90708 | $0.90708 |
| 10 | $0.85151 | $8.51510 |
| 25 | $0.65060 | $16.26500 |
| 50 | $0.63543 | $31.77150 |
| 100 | $0.62061 | $62.06100 |
| 300 | $0.60614 | $181.84200 |
